Precision. Automation.

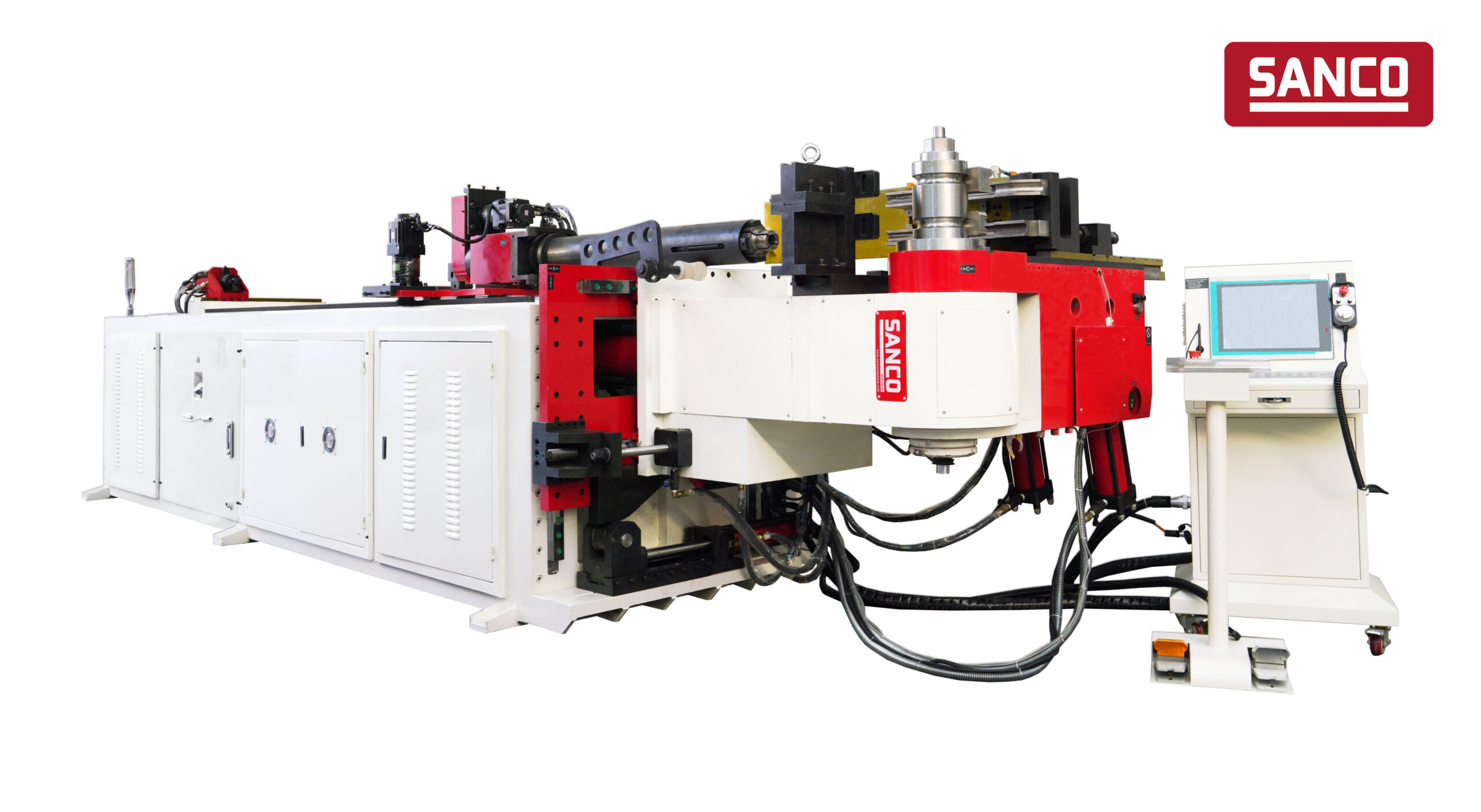

The SB-89CNC is a fully automatic CNC-controlled pipe bending machine designed for high-precision pipe bending applications.
The bending process is performed electrically, with a hydraulic system available as an optional configuration. Pipe feeding and rotation are electrically driven, while clamping and mandrel movement are performed hydraulically.
The machine features a touchscreen control system available in English and other language options, together with a PLC-based control system. An optional Windows XP Industrial PC control system is also available.
Depending on the application, the machine can be equipped with a fan, water, or oil cooling system. An automatic lubrication function is provided as standard.
Electrical and hydraulic components are sourced from Japan, France, and Germany. The machine is built on Taiwan-based core technology developed continuously since 1989.
| SB-89CNC – TECHNICAL SPECIFICATIONS | |
|---|---|
| STANDARD | |
| Model | SB-89CNC-SR-E (H) |
| CNC | Fully automatic |
| SR | Single radius |
| E | Electric bending |
| H | Hydraulic bending |
| Maximum bending capacity | Φ89 × 6 mm |
| Mandrel length | 4500 mm |
| Bending speed |
100°/sec 0–9 levels adjustable |
| Feeding speed |
500°/sec 0–9 levels adjustable |
| Rotating speed |
180°/sec 0–9 levels adjustable |
| Bending precision | ±0.1° |
| Feeding precision | ±0.05 mm |
| Rotating precision | ±0.05° |
| Maximum bending angle | 195° |
| WORKING FEATURES | |
| Working light | Included |
| Data input | Y, B, C or X, Y, Z |
| Lubrication system | Automatic lubrication system |
| Pipe materials | Mild steel, stainless steel, copper, aluminum and other materials |
| Applicable products | Round, square, rectangular and profile pipes and bars |
| CERTIFICATIONS | |
| Standards | CE | ISO 9001 | UL | EAC |
| SB-89CNC – OPTIONAL FEATURES | |
|---|---|
| OPTIONAL | |
| DR | Double radius |
| TR | Triple radius |
| QR | Quadruple radius |
| MR | Multi-radius |
| LR | Left and right direction bending |
| R | Rolling / Pushing |
| P | Punching |
| C | Cutting |
| Safety cover | Optional |
| Bending radius | 1.0 × D radius or tighter |
| Mandrel lubrication | Automatic mandrel lubrication system |
| Cooling system | Fan / Water / Oil cooling system |
| Robot system | Robot loading and unloading |
| Control system | Windows XP controller |
| Industrial PC |
Industrial PC
3D tube visualization, mirror image and reverted image functions |
| 3D bending simulation | 3D bending simulation with CAD file support |
| Coordinate measuring system | Connection to a three-coordinate measuring instrument |
| Safety system | Safety blanket / Infrared alarm device |
| SB-89CNC – TOOLS | |
|---|---|
| TOOL AND MATERIAL SPECIFICATIONS | |
| Standard tool material | 45# steel |
| Optional tool material | Cr12 material |
| Stainless steel pipe |
Mandrel and wiper
Aluminum-copper alloy steel |
| Aluminum pipe |
Bend die, clamp die and pressure die
Nylon material |
| SB-89CNC – STANDARD EQUIPMENT | |
|---|---|
| STANDARD | |
| Standard equipment | DVD, working indicator, one set of sealing rings and tool box |
